SITEXS D2254

BEAM DIRECTIONAL

POWER SUPPLY MAINS

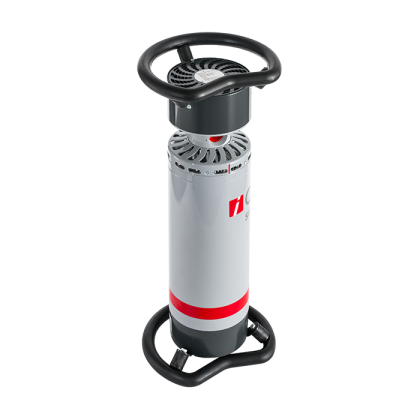

Illustration of:<p><strong>SITE</strong>XS <strong>D</strong>2254</p>

Output voltage 70 to 225 kV

Tube current range 1 to 4 mA

Weight 19 Kg

Need a quote ?

Product information

  Download the datasheet
Unit Value
Radiation geometry - Directional
Output voltage range kV 70 to 225
Tube current range mA 1 to 4
Tube current at full output mA 4.0
Max. power at the anode W N.A
Constant power mode - No
Working cycle at 30°C (*) % 100
Steel penetration (**) mm 43
Weight (excluding guard rings) Kg 19
Overall dimensions mm Ø 305 x 718
Leakage dose at 1 m at full output mSv/h <10
Optical focal spot (EN12543) mm Ø 2.5 x 2.5
Max. useful angle ° 60 x 40 elliptical
Inherent filtration mm Be 0.4 (Ni)
Waterproof level - IP65
Operating temperature °C -25 to +70
Storage temperature °C -40 to +80
Built-in carrousel featuring 5 outputs - No
Guard rings - 2
(*) Open air - 5m/sec airstream - -
(**) 700 mm FFD, 20 min, AA400, D=2 - -
