Discover our range of bendable detectors

The ideal solution for your DR inspections of circumferential welds

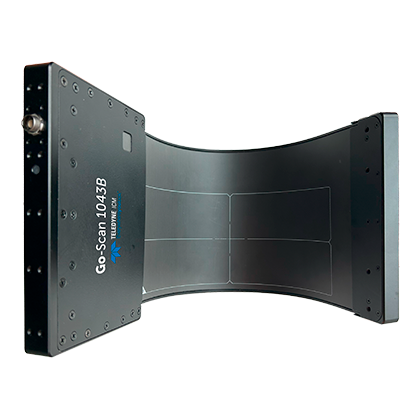

We are thrilled to announce the launch of our new range of bendable portable digital radiography detectors: the Go-Scan 1025B and Go-Scan 1043B!

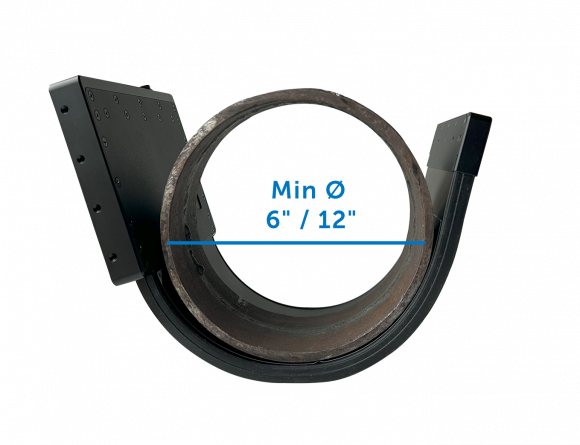

Designed specifically for inspecting circumferential welds on pipes with a minimum diameter of 152 mm (6″), these detectors offer exceptional image clarity, flexibility, and durability, to meet the rigorous demands of NDT field work.

Go-Scan 1025B

Main features

  • High-resolution imaging with 99 µm pixel pitch
  • Battery-operated
  • Lightweight (1.5 Kg/3.3 lbs) & thin (only 20 mm/0.8 in thick)
  • Wireless or cable connectivity options
  • Handles X-ray energy ranges from 40 to 450 kV
  • Compatible with Gamma rays

Application examples

Both Go-Scan 1025B & 1043 are fully integrated with our CPSeries generators.

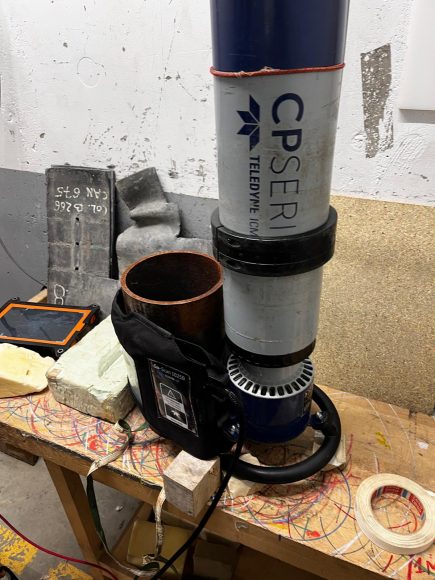

Application of Go-Scan 1025B for small thicknesses

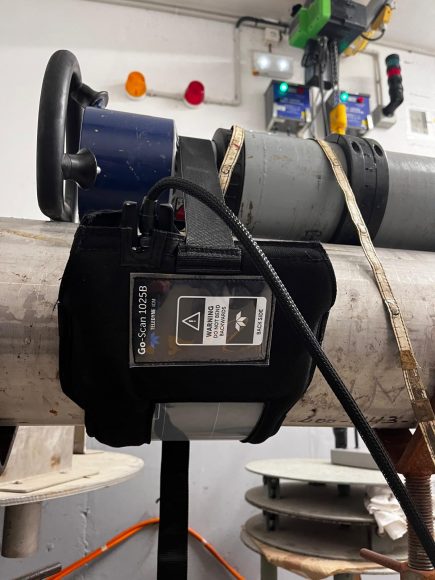

Application of Go-Scan 1025B for large thicknesses

Digital Radiography imaging

The detectors are compatible with state-of-the-art Sherlock NDT software.

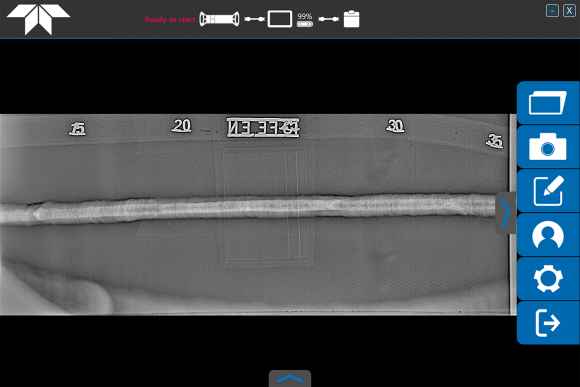

Welding inspection with Go-Scan 1025B in Sherlock NDT software (small thickness)

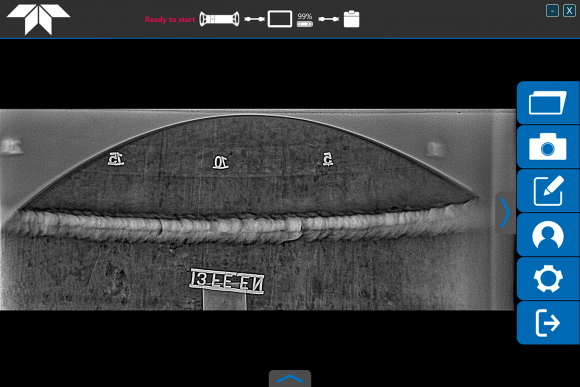

Welding inspection with Go-Scan 1025B in Sherlock NDT software (large thickness)


Interested by a demo of this product?

Contact us!
