SITEX & CPseries

Crawler Units

Illustration of: SITEX & CPseries

CP CRAWLER

PORTBALE X-RAY GENERATOR

OFFERING AN UNRIVALLED WEIGHT TO PERFORMANCE RATIO

Without compromising the performance in any way, the CP160CR features an outside diameter of 120 mm, a length of just 688 mm, and a weight of less than 10 kg, and this makes them the most compact portable X-Ray generators for crawlers available on the market. Delivering an output range that goes from 40 to 160 kV /0.5 to 2 mA, these crawler X-Ray generators are perfect for inspecting pipelines starting at 6 inches.

DELIVERING CONSTANT POTENTIAL

The constant potential X-Ray output of the CP160CR generator has drastically reduced (by 50% on average) the exposure time required to penetrate an equivalent thickness of steel. Just 25 seconds of exposure will be needed to penetrate the typical 22 mm of a 6’’ steel pipe. This translates into quicker results and reduced power consumption, which allows more controls with the same battery charge.

SITEX & SITEXS CRAWLER

Our SITEX and SITEXS are capable of providing the direct and accurate measurement of high voltage. This essential information enables the control system to guarantee the stability and reproducibility of the radiological parameters based on true high voltage, ensuring extremely precise measurements-based utilization.

PERFORMANCE

Following collaborations between our R&D department and the Institute of Thermo-mechanics at the University of Liege, one of the most revolutionary high-efficiency heat exchangers ever has been created. This device allows a 100% working cycle under completely safe conditions and also reduces the anode temperature by 50%, which in turn enables you to use the SITEX Series without ever having to let it cool down.

DELIVERING PERFECT HOMOGENEITY

The SITEX and SITEXS panoramic X-Ray tubes come equipped with a patented automatic beam correction system. Perfect homogeneity is provided thanks to a real time feedback loop adjustment and an EMR (Executive Means Ratio) value of less than 5%.

Ask for more information

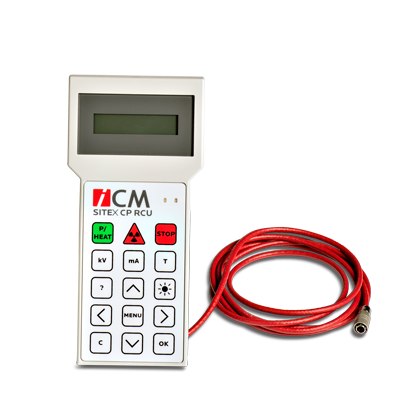

CP RCU

REMOTE CONTROL UNIT FOR CP CRAWLERS

LIGHT AND USER-FRIENDLY

ICM CP crawler generators are equipped with a completely removable control unit, which includes an LCD display and keypad. This pocket-size Remote Control Unit – the CPRCU – provides the operator with the most user-friendly interface available. As soon as the preheating is completed and the kVs and mAs are keyed in, the remote control unit is disconnected and the crawler is ‘ready to go’.

CCU186

REMOTE CONTROL UNIT FOR SITEX CRAWLERS

The CCU186 control unit for crawlers possesses a distinct advantage compared to existing products. In fact, all of the performances that are usually achieved with standard control units are now available in the crawler configura­tion. Automatic slow preheating, the progressive rise in voltage with each exposure, as well as a selection of set values are all included in the CCU186.

As the CCU186 has been entirely fitted with industrial electronic components, it is perfectly suited to the often extreme conditions of automatic intra-tube control campaigns.

Ask for more information
