CP160B

BEAM DIRECTIONAL

POWER SUPPLY BATTERY

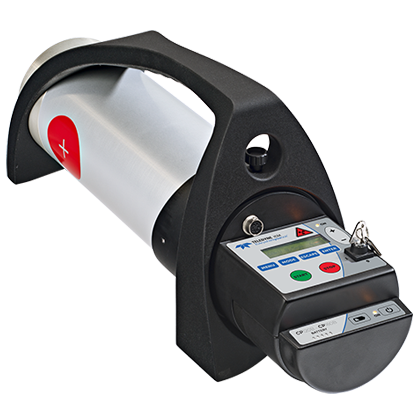

Illustration of:<p><strong>CP</strong>160B</p>
Illustration of:<p><strong>CP</strong>160B</p>

Output voltage 40 to 160 kV

Tube current range 0.1 to 0.5 mA

Weight 9.2 Kg

Need a quote ?

CPBattery

PORTABLE X-RAY GENERATOR

ADVANCED TECHNOLOGY

Next to the CP120B, the CP160B is the slightly more powerful version of our ultra-light, compact and battery operated constant potential portable X-Ray generators. Allowing penetration reaching up to 30 mm for steel, the CP160B is the perfect tool for specific NDT applications that require repetitive short exposures, as well as security applications.

Product information

Unit Value
Radiation geometry - Directional
Output voltage range kV 40 to 160
Tube current range mA 0.1 to 0.5
Tube current at full output mA 0.5
Maximum power at the anode W 80
Constant power mode - Yes
Steel penetration mm 21
Weight (exluding hand rings) Kg 9.2
Overall dimensions mm Ø 124 x 520
Leakage dose at 1 m at full output mSv/h < 2.0
Optical focal spot according to EN12543 mm 0.8 x 0.7
Maximum useful angle ° 60 x 60
Inherent filtration mm Equiv. 3.5 (Al)
Waterproof level - IP54
Operating temperature °C -25 to +50
Storage temperature °C -40 to +80
Guard rings - No
