Go-Scan 15 10 HR

Portable X-Ray Detectors


Illustration of:<p><strong>Go</strong>-Scan 15 10 HR</p>
Illustration of:<p><strong>Go</strong>-Scan 15 10 HR</p>
Illustration of:<p><strong>Go</strong>-Scan 15 10 HR</p>

Resolution 99 µm

Dimensions 15x10 cm

Weight 3.5 Kg

Products NDT Detectors
Need a quote ?

PERFORMANCE

Get Ready!

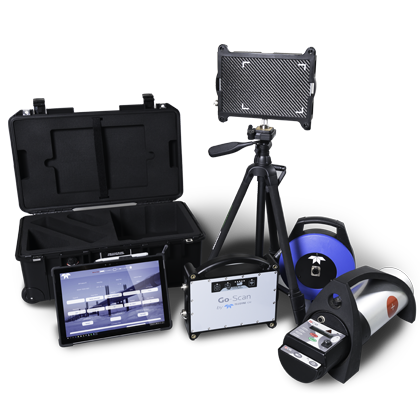

For the first time ever, Teledyne ICM and Teledyne DALSA, two of the most advanced x-ray solution providers in the world, unite forces and reveal the first Integrated Digital Portable X-Ray Solution for Non-Destructive Testing… ever!

High definition, User-friendly, Light-weight, Real-time feedback, Shock absorbing!

By focusing on the end-user as the starting point of this incredible collaboration, we created a high-tech digital x-ray solution entirely designed around you!

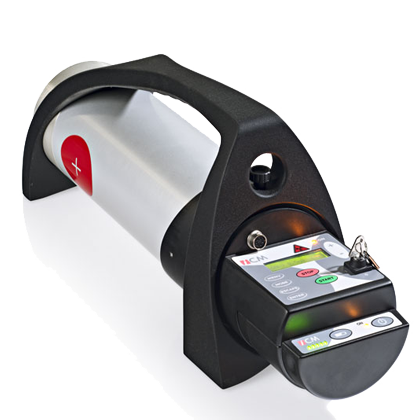

Featuring Teledyne DALSA’s high-resolution CMOS detector, and the lightest x-ray generator on the market, Teledyne ICM’s CPSERIES, the Go-Scan solution is without a doubt the all-around NDT solution when it comes to image quality, ease of use, handiness, and reliability.

PERFORMANCE

  • High definition
  • User-friendly
  • Light-weight
  • Real-time feedback
  • Shock absorbing

INNOVATIVE SOFTWARE

  • Real-time Image Acquisition
  • Automatic IQI Recognition
  • Exposure Time Calculator
  • Image Editing and Stitching
  • Video Recording
  • DICONDE saving option

Product informations

Unit Value
Technology - CMOS
Pixel Pitch µm 99
Pixel Capacity Mode # 2
Active Area mm 102 x 153 / 4 x 6
Active Resolution pxl 1032 x 1548
Data Interface - GigE & Wifi
ADC Conversion bits 14
Frame Rate -1x1 (GigE) fps 30
Power Supply - Battery
Power Consumption W 15
Battery Performance - Approx. 7 hours (continuous operation)
Active Cooling y/n NO
Dimension Detector Head mm/inch 238 x 154 x 25 / 9.4 x 6.0 x 1.0
Overall Dimension mm/inch 238 x 154 x 80 / 9.4 x 6.0 x 3.1
Detector Head Weight Kg/ lb 1.6 / 3.5
Overall Weight Kg/ lb 3.5 / 7.7
Operating Temperature C°/F° -20, +50 / -4, +122
Storage Temperature C°/F° -20, +60 / -4, +140
Humidity % R.H 20 to 80
X-Ray Energy Range kV 10 to 225
IP Range - IP65
