CP300C

CONSTANT POTENTIAL GENERATOR

METAL CERAMIC X-RAY TUBE

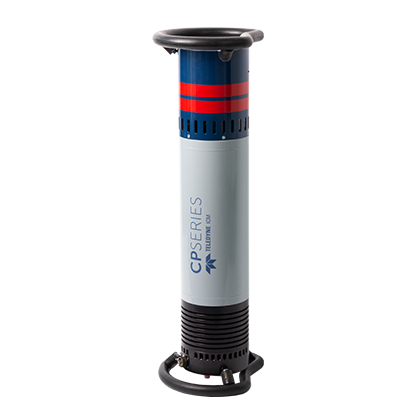

Illustration of:<p><strong>CP</strong>300C</p>

Output voltage 30 to 300 kV

Tube current range 0.5 to 10 mA

Weight 29.4 Kg

Need a quote ?

OUR FIRST PANORAMIC
METAL-CERAMIC X-RAY GENERATOR

The CP300C is the first panoramic x-ray generator of the CPSeries product range. Equipped with a metal-ceramic tube, the CP300C is a light (less than 30kg) and powerful generator (300 kV), able to penetrate up to 52mm of steel in 10 minutes, making it the best power-to-weight ratio in the world.

The efficiency of the CP300C is also maximum thanks to its real 100% duty cycle that allows longer exposure time (> one hour).

A full range of accessories is available (holding bars, tripod…) and even a 60°x40° lead diaphragm to convert the CP300C into a directional unit.

Like the rest of the CPSeries product range, the CP300C operates with the plug-and-play POWERBOX control unit.

Product information

Unit Value
Radiation geometry - Panoramic
Output voltage range kV 30 to 300
Tube current range mA 0.5 to 10
Tube current at full output mA 2.5
Max. power at the anode W 750
Constant power mode - Yes
Working cycle at 30°C % 100
Steel penetration mm / in 52 / 2.05
Weight Kg / lbs 29.4 / 64.81
Overall dimensions mm/in Ø 180 x 837 / 7.1 x 33
Leakage dose at 1 m at full output mSv/h < 5.0
Optical focal spot (EN12543) mm 0.5 x 5.5 / 0.2 x 0.21
Max. useful angle ° 360 x 40
Inherent filtration mm 0.4 Ni / 0.02 + 3.5 / 0.14 Al
Waterproof level - IP65
Operating temperature °C -30 to +60
Storage temperature °C -40 to +70
Guard rings - 2
