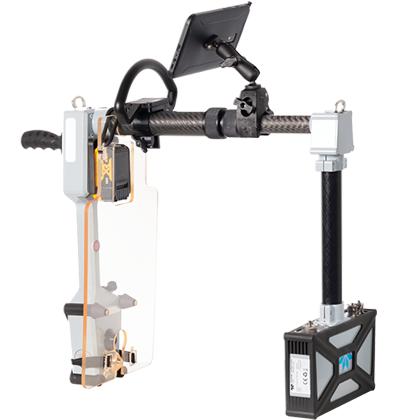

Go-Scan C-VIEW

Real Time X-ray Inspection System

Illustration of:<p><strong>Go</strong>-Scan C-VIEW</p>

Real Time X-ray Up to 30 fps

Pixel Pitch 99 µm

Communication Wireless or Wired

Need a quote ?

Go-Scan C-View

REAL TIME X-RAY IMAGING

YOUR CUI INSPECTION PARTNER

Go-Scan C-view is a light weight ruggedized real time X-ray imaging system specifically designed for hand-held inspection such, among other, Corrosion Under Insulation (CUI) inspection. It includes a high speed and high resolution CMOS imager and a battery-operated 70kV x-ray tube designed for portable field operation. The video imaging system captures images and displays them on a hand held display in real-time.

Product information

GENERAL UNIT VALUE
Detector technology - CMOS
Pixel pitch µm 99
Active area mm / in 102 x 153 / 4.0 x 6.0
Active resolution pxl 1032 x 1548
Video frame rate fps Up to 30
Communication - Wireless or Wired
Adjustable length mm / in 300 to 650 / 12 to 26
Energy range kV 40 to ~ 70
X-ray max power output W 12
Power supply - Dewalt battery
Battery performance h ~2 (with 5 Ah battery)
Weight kg / lbs < 6.5 / 14.3
ENVIRONEMENTAL UNIT VALUE
Operational temperature C° / F° -20, +50 / -4, +122
Storage temperature C° / F° -30, +60 / -22, +140
IP rating - 65
