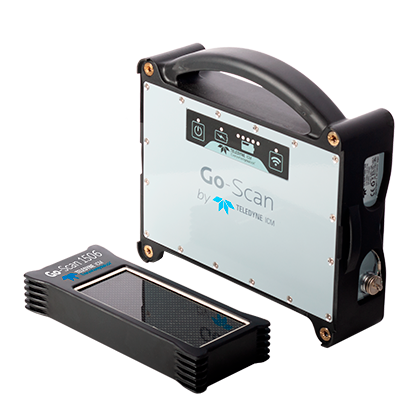

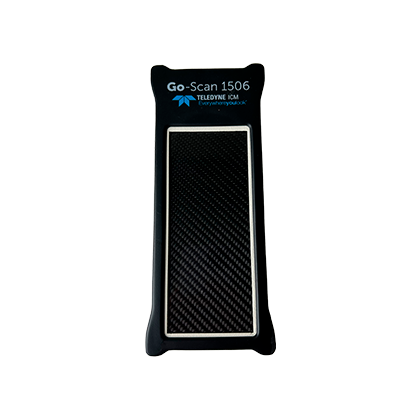

Go-Scan 1506

Portable X-Ray Detectors

Illustration of:<p><strong>Go</strong>-Scan 1506</p>
Illustration of:<p><strong>Go</strong>-Scan 1506</p>

Resolution 49.5 µm

Dimensions 15x6 cm

Weight 1.04 Kg

Products NDT Detectors
Need a quote ?

Our most compact digital radiography detector

Discover the Go-Scan 1506, our most compact digital radiography detector for a wide range of NDT applications.

Its small size makes it ideal for small pipes, tight spaces and hard-to-reach places.

With its 49.5 µm resolution, this Teledyne DALSA’s high-resolution CMOS technology detector will enable you to obtain a high-quality image and achieve Class B (ISO 17636-2) for your inspections.

Combined with one of our CPSERIES X-ray generators, the Go-Scan solution is without doubt the most complete non-destructive testing solution in terms of image quality, ease of use, handling and reliability.

As with all our Go-Scan detectors, the Go-Scan 1506 will be equipped with our intuitive and user-friendly software, Sherlock NDT, developed by and for NDT specialists.

Product informations

Unit Value
Technology - CMOS Active Pixel
Pixel pitch µm 49.5
Pixel capacity mode # 1
Active area mm/in 57 x 146 / 2.2 x 5.7
Active resolution pxl 1152 x 2940
Data interface - GigE & Wi-Fi
ADC conversion bits 14
Frame rate - 1x1 (GigE) fps 15
Power supply - Mains / Battery
Power consumption W 40
Dimensions (without sleeve) mm/in 206 x 78 x 31 / 8.1 x 3 x 1.2
Overall dimensions mm/in 218 x 90 x 35 / 8.6 x 3.5 x 1.4
Weight Kg/lbs 1.04 / 2.29
Operating temperature °C/°F +10, +40°C / +50, +104°F
Storage temperature °C/°F -10, +55°C / +14, +131°F
Humidity % R. H. 10 to 80
X-ray energy range kV Up to 225
