CPBATTERY
FAST BATTERY CHARGER
FULLY CHARGED WITHIN THE HOUR

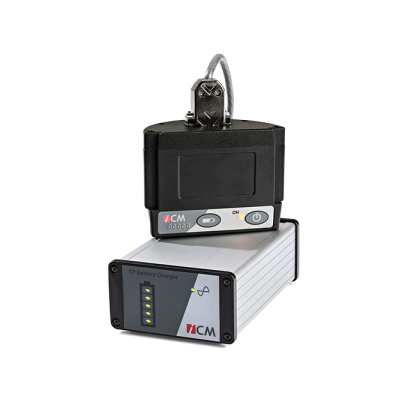

The Li-ion battery pack charger is uniquely designed to charge the Li-ion battery packs of either the CP120B or CP160B generators.
On the front panel there is a ‘power-on’ LED indicating that a supply voltage is present and the charger is switched on, as well as a led battery charge indicator that displays the progress of the charge cycle.
On the rear panel you will find a standard IEC power connector, a power switch and a fuse holder.
Product informations
UNIT | VALUE | |
---|---|---|
Input voltage | Vac | 100 - 240 |
Input frequency | Hz | 47 - 63 |
Consumption current | A | 0.4 (under 230V) |
Output voltage | Vdc | 42 |
Output current | A | 1.65 |
Operating temperature | °C | 0 to +40 |
Storage temperature | °C | -20 to +50 |
Charging time | min | 60 |
Weight | Kg | 1.17 |
to download the datasheet or catalog
