LITEX

PORTABLE X-RAY GENERATOR FOR SECURITY APPLICATIONS

COMPACT, LIGHT, EFFICIENT!

The Teledyne ICM LITEX is a very compact, rugged and super light portable x-ray generator.
It is specially designed for extreme portability without any compromise on power and ease of use. Developed for and with EOD teams, this  constant potential x-ray generator is equipped with a very small focal spot offering a far better image quality compared to traditional “pulsed generator”. The system is powered by an “off the shelf” Dewalt Li-Ion Battery for maximum efficiency and flexibility.

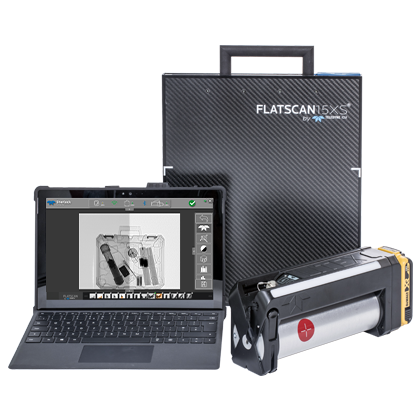

Combined with the well-known Teledyne ICM Flatscan15 XS, the LITEX  will offer you the lightest and most compact solution for EOD team available on the market. In a single backpack.





Product information

Unit Value
Energy range kV 40 to 120
Tube current range mA 0.05 to 0.25
Optical focal spot (EN12543) mm 0.8 x 0.5
Maximum useful angle ° 50 x 50
Overall dimensions (with battery) mm 306 x 126 x 90
Steel penetration mm 35 (Optimal conditions)
IP rating - IP54
Weight Kg / Lbs 2.5 / 5.62
Power supply - Dewalt Li-Ion battery
