EXTERNAL POWER SUPPLY

For CPBattery

Illustration of:<p><strong>EXTERNAL</strong> POWER SUPPLY</p>
Need a quote ?

CPBATTERY

EXTERNAL POWER SUPPLY

POWER SUPPLY

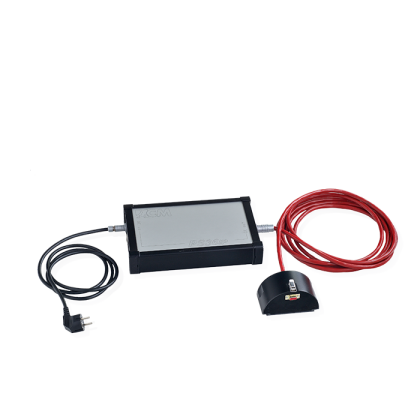

When a power outlet is available near the CP120B or CP160B generators, a specific mains power supply can be used to directly power the generators without having to use the battery packs. This equipment consists of an adaptor in the shape of a battery pack that enables both an easy and solid connection to the CP generator.

A green LED on the side of the main power cable indicates that the PS36 is switched on and that a supply voltage is available.

Product information

UNIT VALUE
Input voltage Vac 85 - 265
Input frequency Hz 50 - 60
Consumption current A 2.5 max (internal 6A fuse)
Output voltage Vdc 42.5
Output current A 5.6
Nominal output power W 30
Operating temperature °C -20 to +60
Storage temperature °C -40 to +85
