PERFORMANCES

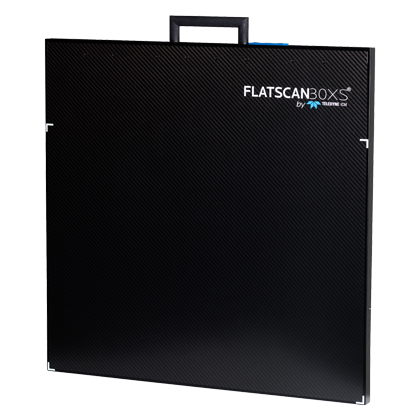

With a 30” detection area, the FLATSCAN30 XS features the biggest detection surface on the market. In fact, with its larger inspection zone, the FLATSCAN30 XS will enable EOD operators to assess the level of risk of most suspect packages in just one single X-Ray shoot, which means the user’s exposure to danger will be dramatically reduced. Developed both for and by EOD operators, this detector has been specifically designed to be the most ergonomic and user-friendly digital panel on the market.
Product information
| FLATSCAN30 X-RAY DETECTOR | Unit | Value |
|---|---|---|
| Sensor type | - | Linear diode array |
| Resolution | - | 40 AWG / 1.25 lp/mm |
| Pixel size | μm | 400 - 800 |
| Dynamic range (grey levels) | bits | 16 |
| Active area | mm | 614 x 460 |
| Max. penetration in steel with CP120B (guaranteed) | mm | 30 |
| Max. penetration in steel with CP160B (guaranteed) | mm | 40 |
| Max. penetration in steel with CP120B (optimized) | mm | 35 |
| Max. penetration in steel with CP160B (optimized) | mm | 45 |
| External dimensions | mm | 665 x 628 x 25 |
| Weight | Kg | 5.46 |
| Operating temperature | °C | -10 to +50 |
| Storage temperature | °C | -10 to +65 |
| Communication protocol | - | Bluetooth, Wifi, or cable |
| SOFTWARE FEATURES |
|---|
| Histogram |
| Pan, Zoom, distance measurement |
| Pseudo color |
| Deep focus |
| Low battery alarm |
| X-Ray source parameters adjustable |
| Material separation |
| Emboss |
| Stitching |
| WORK WITH | CP120B | CP160B |
|---|---|---|
| Waveform | Constant potential | Constant potential |
| Max. Kv | From 40 to 120 kV | From 40 to 160 kV |
| Max. mA | 0.1 to 1.5 | 0.1 to 0.5 |
| Exposure time | Adj. from 1 to 300 sec | Adj. from 1 to 300 sec |
| Pre-warning time | Adj. from 1 to 99 sec | Adj. from 1 to 99 sec |
| Optical focal spot | 0.8 to 0.5 mm | 0.8 to 0.7mm |
| Beam angle | 50 x 50 | 60 x 60 |
| Leakage dose | 1250 μSv/h | 2000 μSv/h |
| Battery | Li-ion | Li-ion |
| Weight | 7.5 Kg | 9.2 Kg |
