SITEX D2506

SELF-RECTIFIED GENERATOR

POWER SUPPLY MAINS

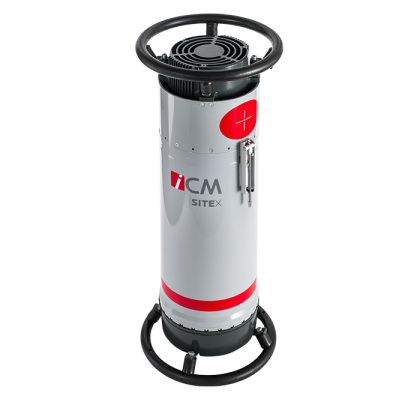

Illustration of:<p><strong>SITE</strong>X <strong>D</strong>2506</p>

Output voltage 90 to 250 kV

Tube current range 1 to 6 mA

Weight 28 Kg

Need a quote ?

Product information

Unit Value
Radiation geometry - Directional
Output voltage range kV 90 to 250
Tube current range mA 1 to 6
Tube current at full output mA 6.0
Max. power at the anode W N.A
Constant power mode - No
Working cycle at 30°C (*) % 100
Steel penetration (**) mm 54
Weight (excluding guard rings) Kg 28
Overall dimensions mm Ø 346 x 771
Leakage dose at 1 m at full output mSv/h <10
Optical focal spot (IEC336) mm Ø 2.5 x 2.5
Max. useful angle ° 60 x 40 elliptical
Inherent filtration mm Be 2.5 (Al) + 0.4 (Ni)
Waterproof level - IP65
Operating temperature °C -25 to +70
Storage temperature °C -40 to +80
Built-in carrousel featuring 5 outputs - No
Guard rings - 2
(*) Open air - 5m/sec airstream - -
(**) 700 mm FFD, 20 min, AA400, D=1.5 - -
