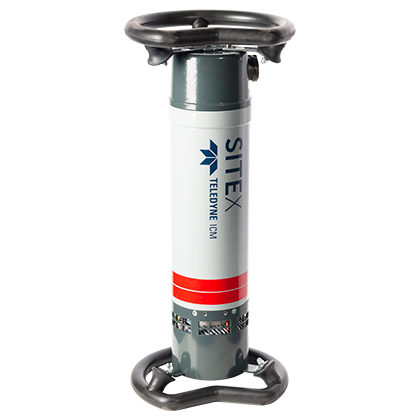

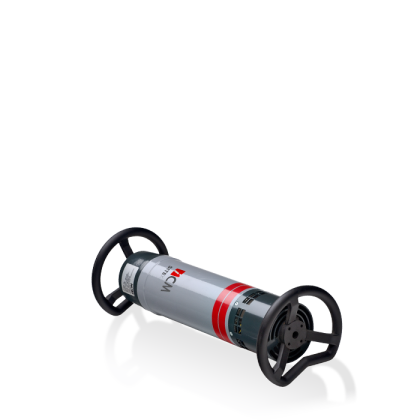

SITEX C1802S

SELF-RECTIFIED GENERATOR

POWER SUPPLY MAINS

Illustration of:<p><strong>SITE</strong>X <strong>C</strong>1802S</p>

Output voltage 50 to 180 kV

Tube current range 1 to 3 mA

Weight 9.5 Kg

Need a quote ?

Product information

Unit Value
Radiation geometry - Panoramic
Output voltage range kV 50 to 180
Tube current range mA 1 to 3
Tube current at full output mA 2.0
Max. power at the anode W N.A
Constant power mode - No
Working cycle at 30°C (*) % 50
Steel penetration (**) mm 16.5
Weight (excluding guard rings) Kg 9.5
Overall dimensions mm Ø250 x 574
Leakage dose at 1 m at full output mSv/h <2.0
Optical focal spot (IEC336) mm Ø 4 x 0.5
Max. useful angle ° 360 x (2X20)
Inherent filtration mm Be Equiv. 3.5 (Al)
Waterproof level - IP65
Operating temperature °C -25 to +70
Storage temperature °C -40 to +80
Built-in carrousel featuring 5 outputs - No
Guard rings - 2
(*) Open air - 5m/sec airstream - -
(**) 700 mm FFD, 20 min, AA400, D=1.5 - -
