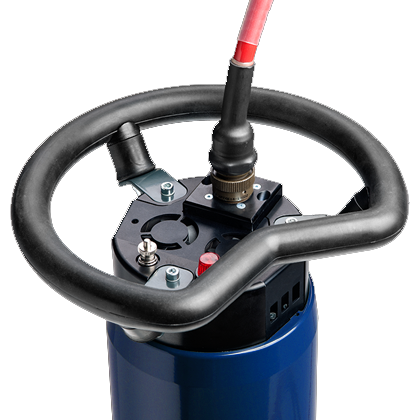

SITEX CP225D

BEAM DIRECTIONAL

POWER SUPPLY MAINS

Illustration of:<p><strong>SITE</strong>X<strong> CP</strong>225D</p>
Illustration of:<p><strong>SITE</strong>X<strong> CP</strong>225D</p>
Illustration of:<p><strong>SITE</strong>X<strong> CP</strong>225D</p>

Output voltage 10 to 225 kV

Tube current range 1 to 10 mA

Weight 12.1 Kg

Need a quote ?

BEST EVER DESIGN

The CP225D is currently the most powerful constant potential X-Ray generator in ICM’s portfolio. Supplemental to its outstanding penetration capacity (up to 47 mm for steel in just 10 minutes), it includes a built-in multiple X-Ray output carrousel that features a Beryllium window for the inspection of lighter alloys such as aluminum and carbon fiber. The CP225D is one of the most versatile generators on the market and will adapt to an extremely wide variety of applications. In fields as diverse as the construction or petrochemical industries, its power and small focal spot, light weight, compactness and high penetration capacity will be much appreciated.

Product information

  Download the datasheet
Unit Value
Radiation geometry - Directional
Output voltage range kV 10 to 225
Tube current range mA 1 to 10
Tube current at full output mA 4.0
Max. power at the anode W 900
Constant power mode - Yes
Working cycle at 30°C * % 100
Steel penetration mm 47
Weight (excluding guard rings) Kg 12.1
Overall dimensions mm Ø 140 x 725
Leakage dose at 1 m at full output mSv/h < 2.0
Optical focal spot (EN12543) mm 3.0 (~1.5 IEC 336)
Max. useful angle ° 60 x 40 elliptical
Inherent filtration mm Be 0.8 (Be Window)
Waterproof level - IP65
Operating temperature °C -30 to +60
Storage temperature °C -40 to +70
Built-in carrousel featuring 5 outputs - Yes
Guard rings - 2
