CPRCU

REMOTE CONTROL UNIT

FOR CPSERIES CRAWLER

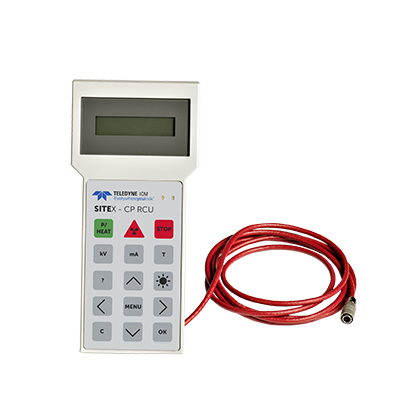

Illustration of:<p><strong>CP</strong>RCU</p>

Unique supply voltage From 40 to 60 VDC

Max mean current 9A (160 kV/2 mA)

Weight 0.28 Kg

Need a quote ?

SITEX CPSERIES

CP Remote Control Unit

LIGHT AND USER-FRIENDLY

ICM crawler generators are equipped with a completely removable control unit, which includes an LCD display and keypad. This pocket size Remote Control Unit – the CPRCU – provides the operator with the most user-friendly interface available for crawler tubes. As soon as the preheating is completed and the kVs and mAs are keyed in, the remote control unit will be disconnected and the crawler will be ‘ready to go’

Product information

Unit Value
Type of power supply - Provided by the crawler
Unique supply voltage VDC 40 to 60
Max. mean current (160 kV/ 2 mA) A 9
Constant power mode - Yes
Direct kV an mA measurements - control accuracy % +0.5 / -0.5
Display of programmed parameter - Yes
kV, mA programming steps kV / mA 1 / 0.1
Useful range of the internal preheating timer min 5 to 60 (1 min steps)
Battery voltage control accuracy % +/- 0.5
LCD display with variable contrast Line x char. 2 x 20
Sensory type keypad Char. 14
General switch on function Keys Provided by the crawler
START, STOP and exposure time functions - Provided by the crawler
Semi-automatic preheating at selected kV - Yes
Weight Kg 0.28
Overall dimensions mm 211 x 100 x 26
Working ambient temperature °C -20 to +70
Storage ambiant temperature range °C -40 to +85
