ControlUnit

FOR SITEX & SITEXS

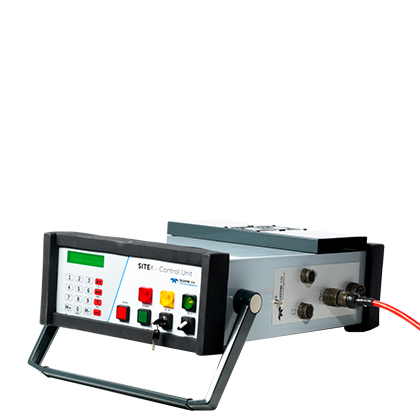

Illustration of:<p><strong>Control</strong>Unit</p>

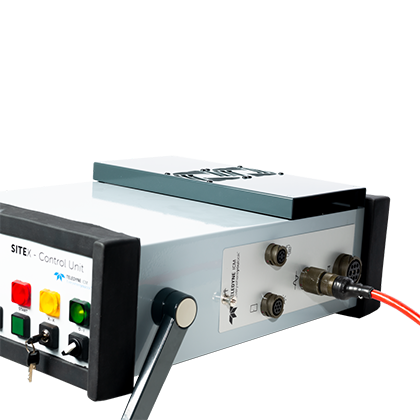

Illustration of:<p><strong>Control</strong>Unit</p>
Illustration of:<p><strong>Control</strong>Unit</p>

Supply voltage range From 198 to 264 VAC

Supply frequency range From 45 to 66 Hz

Weight 14 Kg

Need a quote ?

SITEX & SITEXS CONTROL UNITS

SITEX SCU286

PERFORMANCE

The SCU286 has a system for direct measurement of the high voltage delivered by the X-Ray generator to guarantee the accuracy of the radiological parameters. Based on this data the control system maintains the stability of mA and kilovolts to within ± 0.5% in any selection range.

SITEX & XS units offer a totally constant quality of exposures, as they are virtually exempt from fluctuations in the power supply.

OPERATOR INTERFACE

The user-friendly high strength polyester front panel is equipped with a sensory-type 16-key keypad, a high brightness display and an anti-reflection screen.

The SCU286 also includes a programmable access codes system that features three security levels (supervisor, operator and service engineer) which limit the access to certain functions in relation to the security level selected.

DATABASE

First and foremost, our SCU286 control unit is intended to be user-friendly. In order to reduce the number of test shots to a minimum, the operator can use a virtually unlimited source of standard exposures that have been previously pre-defined. In fact, all of the radiological parameters of exposure can be memorized by simply pressing a single key, which means the operator can return to this whenever he or she wants to without having to key them back in again!

Product information

Unit Value
kV, mA and time setting steps kV, mA, sec 1.0, 0.1, 1.0
Exposure time range min, sec 1 sec to 99 min 59 sec
Direct kV and mA measurement (Control accuracy) % Yes / +0.5 / -0.5
Simultaneus display of measurements and settings - Yes
Pilot light indicator (Power ON, X-ray ON, Securities) - 3
Independant START and STOP buttons - Yes
Two position safety key rotary switch - X-ray ON / STANDBY
Two position main rotary switch - Mains ON / OFF
High brightness graphic Vacuum Fluorescent Displays (VFD) - 2 x 20 with anti-reflection screen
Preheating is function of selected kVs (kV max by default) - Automatic
Exposure time calculator (material, FFD, film, density, kV, mA, time) - Optional
User-defined data enabling exposure time calculation - Optional
Type of power supply - Mains, Power generator
Supply voltage range – SELECTOR FREE – Auto resettable fuses VAC From 198 to 264
Supply frequency range – SELECTOR FREE Hz From 45 to 66
Minimum Power Factor % > 0.7
Max RMS mains current (300 kV / 6 mA - SITEX D3006) A 12 at 220 VAC
Storage ambient temperature range °C -40 to +80
Working ambient temperature range °C -25 to +55
Protection Class - IP65
Weight Kg 14
Dimensions without handle mm 355 (W) x 157 (H) x 520 (D)
