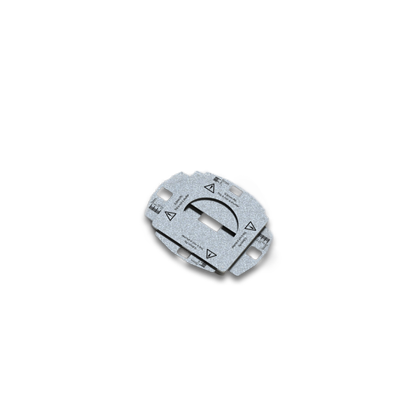

ADJUSTABLE COLLIMATOR

IMPROVED PENETRATION & IMAGE QUALITY

Detailed images are a common goal for all NDT operators. Depending on the configurations, noise or backscattering effects, disturbances in the results and interpretations may occur.

To reduce these effects, ICM engineers have developed a specific adjustable collimator that helps to manually reduce the X-Ray beam that comes from the CP120B and the CP160B. The collimator strictly focuses the X-Ray beam on the target and in doing so reduces the noise effect, the backscattering effects and improves the penetration.

This collimator can be mounted on the CP120B & CP160B via a specific support that is placed on the generators.

Product informations

UNIT VALUE
Dimensions (closed) mm 125 x 125 x 16.5
Weight Kg 0.4
lead thickness mm 0.5
Penetration into steel (CP120B) mm 33 (at 20 cm)
Penetration into steel (CP160B) mm 45 (at 20 cm)
