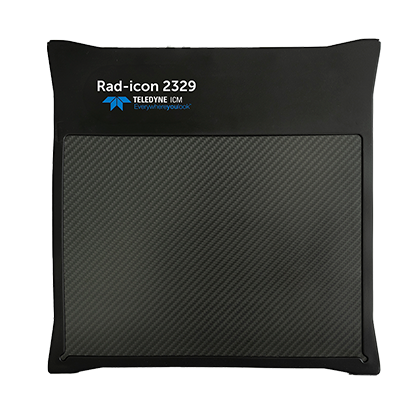

Discover Rad-icon 2329
With a resolution of 49.5 µm for an active area of 230×290 mm (9×11.4 in), the Rad-icon 2329 is the only detector on the market with such a high resolution to image size ratio.
The image quality reaches class B (ISO 17636-2) for almost all your applications.
High definition, user-friendly, light-weight, real-time feedback, shock absorbing!
Featuring Teledyne DALSA’s high-resolution CMOS detector, the Rad-icon 2329 is without a doubt the perfect NDT solution when it comes to image quality, ease of use, handiness, and reliability.
Product informations
| Unit | Value | |
|---|---|---|
| Technology | - | CMOS Active Pixel |
| Pixel Pitch | µm | 49.5 |
| Active Area | mm/in | 228 x 292 / 9 x 11.5 |
| Active Resolution | pxl | 4608 x 5890 |
| Data Interface | - | GigE |
| ADC Conversion | bits | 14 |
| Frame Rate - 1x1 (GigE) | fps | up to 2 |
| Power Supply | - | Main |
| Power Consumption | W | 15 to 40 |
| Overall Dimension (without sleeve) | mm/in | 331 x 331 x 23 / 13 x 13 x 0.9 |
| Overall Weight (without sleeve) | Kg/lbs | 8 / 17.6 |
| Operating Temperature | C°/F° | 0 to +50 / +32 to +122 |
| Storage Temperature | C°/F° | -10 to +55 / +14 to +131 |
| Humidity | % R. H. | 20 to 80 |
| X-Ray Energy Range | kV | 10 to 225 |
