TOUCHSCREEN SOFTWARE FOR ON-THE-FIELD
NDT DR INSPECTIONS
Sherlock NDT is the perfect link between Teledyne ICM best in class portable X-ray generator, the CPSERIES, and our high-resolution digital radiography detectors, the Go-Scan SERIES. Developed by and with NDT DR specialists, this intuitive and user-friendly touchscreen software produces high-quality images, allows real-time (video) acquisition, and comes with many different enhancement features.
Allowing compliance with most inspection quality standards, Sherlock NDT offers the control and adjustment in real-time of both the generators (CPSERIES and CPBattery) and the detector (Go-Scan SERIES), which guide and assist the NDT operators through all the inspection process and help him to reach the best quality image possible.
Product informations
| Software features |
|---|
| Allow control of the CPSERIES and CPBattery generators |
| Integrated with Go-Scan detectors |
| All-in-one touchscreen software |
| Available in 20 languages |
| Add unlimited users |
| Library to store all inspections efficiently |
| Interconnected by cable or wireless |
| Fast image acquisition |
| Preset exposure configurations |
| Multiple image editing features |
|---|
| Image editing |
| Real-time adjustable dynamic filter |

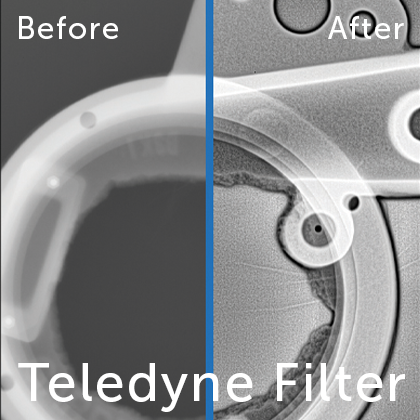

| Adjustable Teledyne filter |
| Automatic & manual histogram equalization |
| DICONDE compliant |
| Emboss |
| Black & white |
| Pseudo-colours |
| Grey level input value |
| HDR |
| Smart measurement tool |
| SNR / SNRn |
| CNR / CNRn |
| SRb / iSRb / automatic IQI recognition |

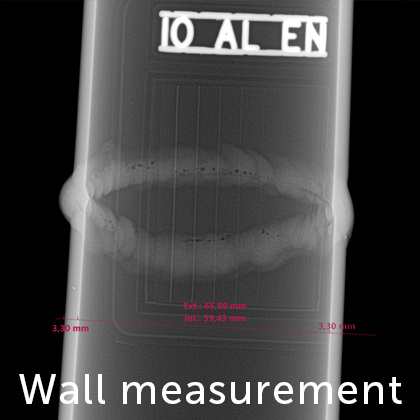

| Wall thickness measurement |
| Annotation / Highlight |
| Mirroring / Rotation |
| Pixel map generation and edition |
| Real-time image acquisition |
| Exposure time calculator |

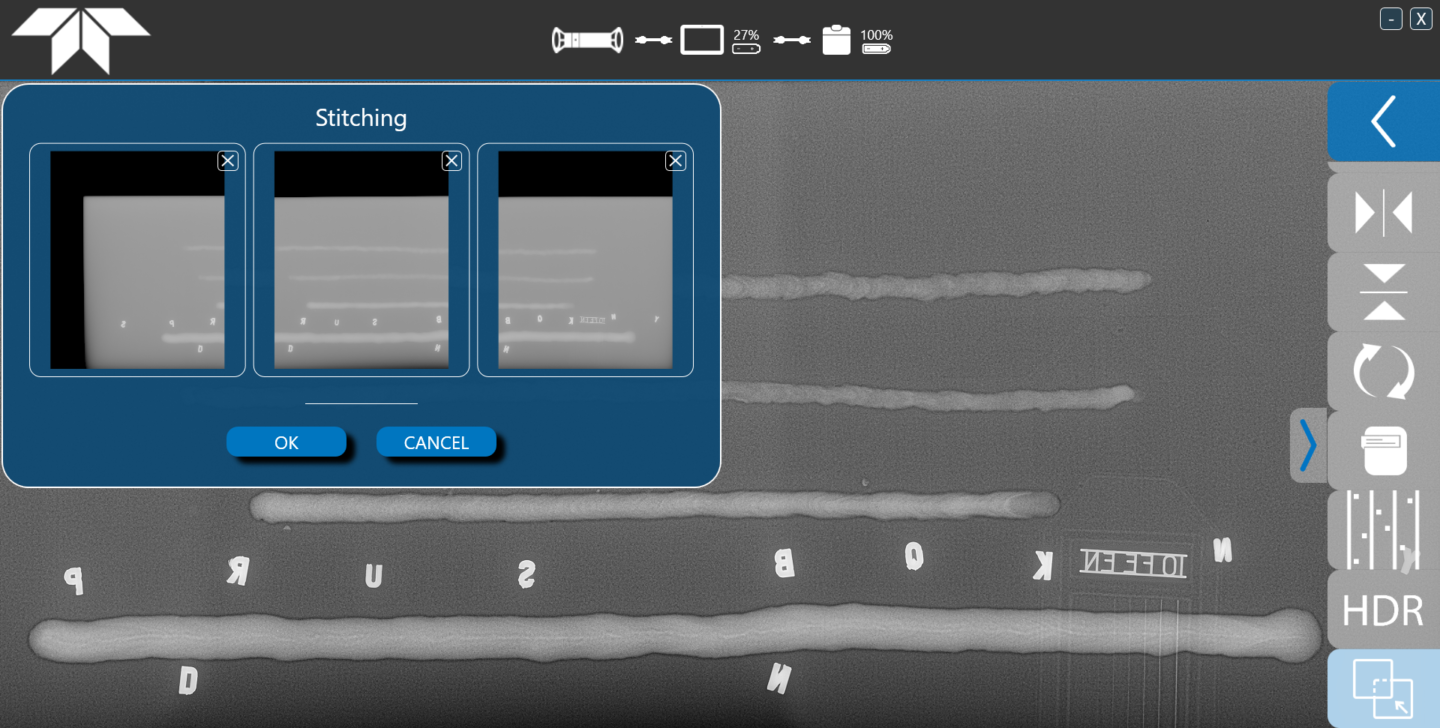

| Stitching tool |
| Monitoring and modifying parameters during inspection |
| During the inspection, possibility to adapt parameters and apply filters |
| Superpower zoom (up to 5000%) |
| Drag & drop external images from Windows into the image editor |
| Automatic file export |
| ROI filtering |
| Gamma sources support |
| "No detector" mode |
| Advanced reporting and data export tools (custom tags, tags edition, new data export features) |
| Extended detector range support |
